SPECIFICATIONS

Brand Name: ECO－WORTHY

Charging Mode: MPPT (Maximum Power Point Tracking)

Current Type: AC/DC

Features: Automatic Voltage Detection, LCD Display

High-concerned chemical: none

Inverter Technology: Battery-Based

Origin: Mainland China

PCBincluded: No

Protection Properties: Open Circuit Protection, Overcurrent Protection, Overload Protection, Overspeed Protection, Overvoltage Protection, Safety Circuit Protection, Short Circuit Protection

Recommended Environment: Indoor/Outdoor

Specification: Normal

System Configuration: Off-Grid

Type: Solar Energy Systems (excluding batteries)

Wattage: 6000W-9000W

Work Time (h): 24

[6000W Split-Phase All-in-One Inverter]

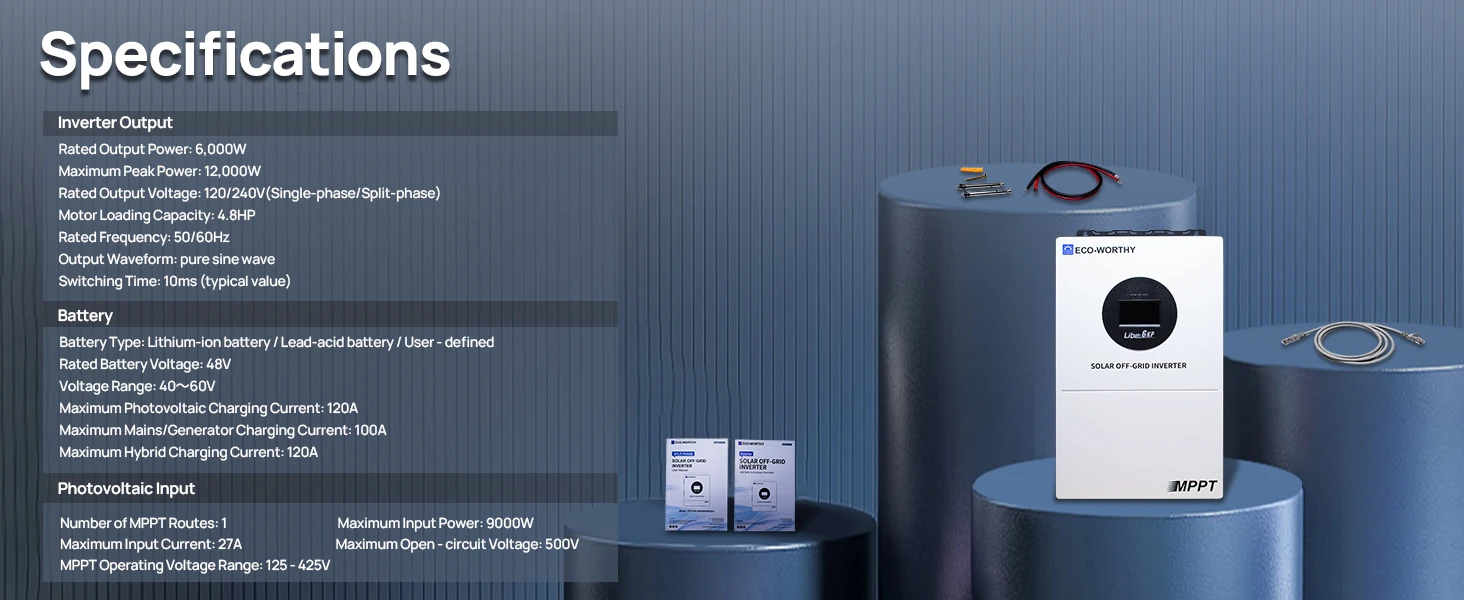

Converts 48V DC to split-phase 240V AC and comes equipped with a 9000W MPPT solar charge controller. The maximum PV open-circuit voltage is 500VDC, with an MPPT operating range of 125VDC–425VDC; maximum solar charging current is 120A; maximum AC charging current is 100A.

[Easy Real-Time Monitoring with Touchscreen Control]

The newly designed inverter features an LED capacitive touchscreen, allowing users to easily configure system parameters and view real-time system data and operating status. If a fault occurs, the corresponding error code is displayed to help users quickly identify and resolve issues. In addition, the inverter has three LED indicators that dynamically display system information, allowing users to check inverter status at a glance — a highly practical feature.

[Multiple Output Modes]

The default setting is Grid Priority (UTL mode). In SOL mode, the load is primarily powered by solar energy; when solar power is insufficient, the grid supplies the load. In SBU mode, the load is primarily powered by solar energy, and when solar is unavailable, power is drawn from the battery. In SUB mode, the battery is primarily charged by solar power before supplying the load; if no solar power is available, the grid provides the energy.

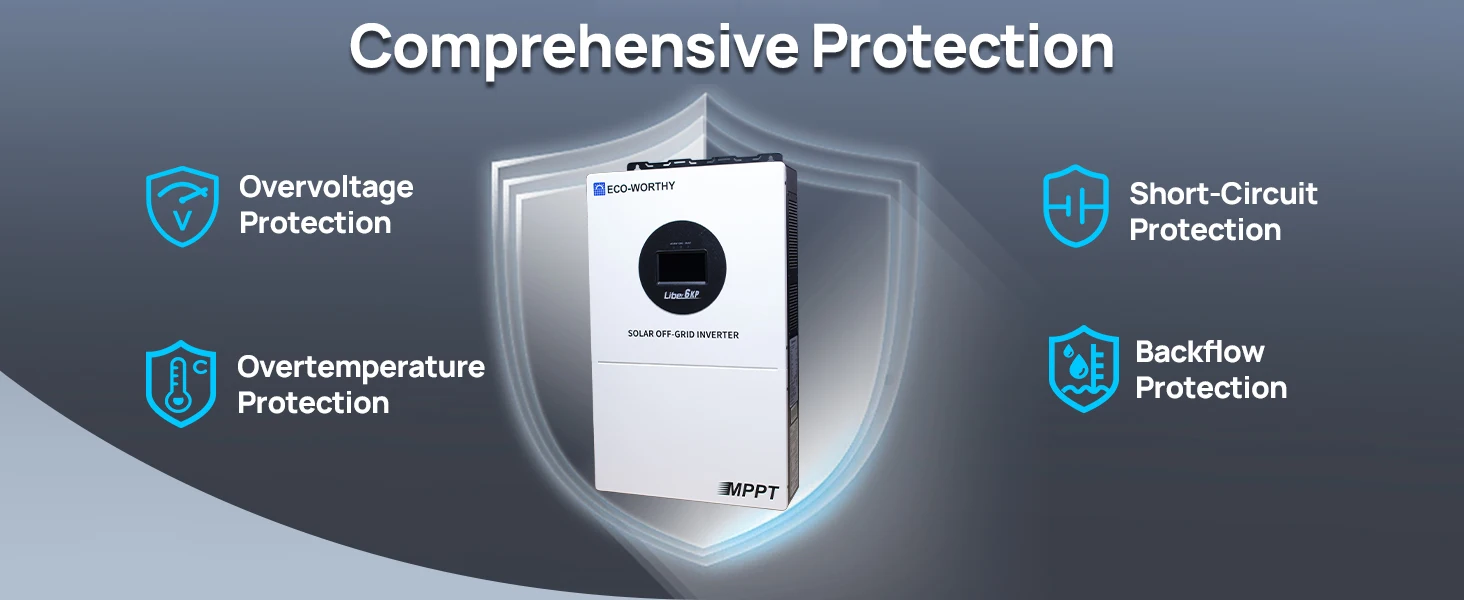

[Three Charging Modes & Multiple Protection Features]

Supports three charging modes: hybrid charging with solar and grid power (default), limited solar charging, and pure solar charging. The inverter also includes multiple protection functions to ensure safe and reliable charging. It supports communication with a Battery Management System (BMS) for real-time monitoring, enabling stable operation when connected to server rack batteries.

[Wide Range of Applications]

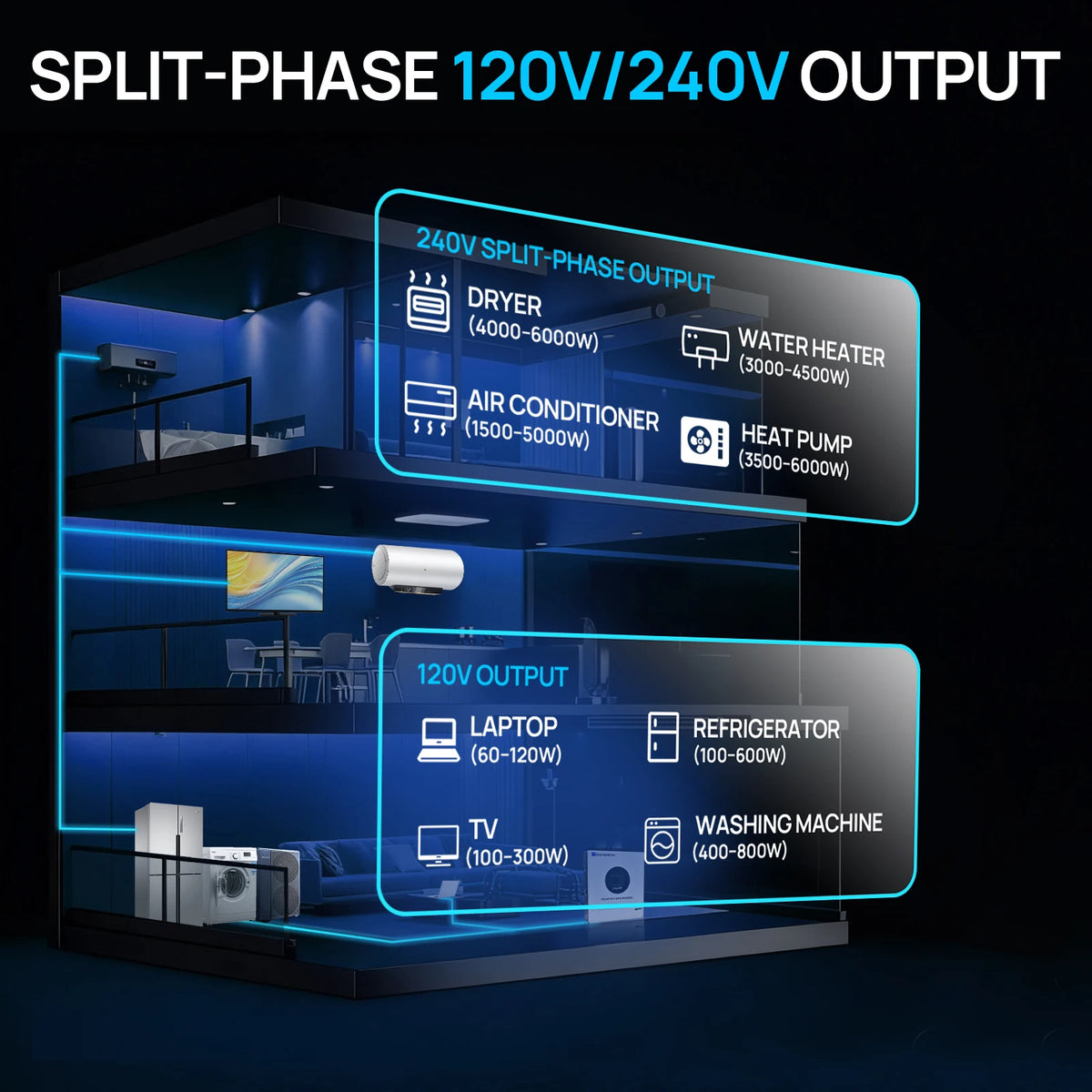

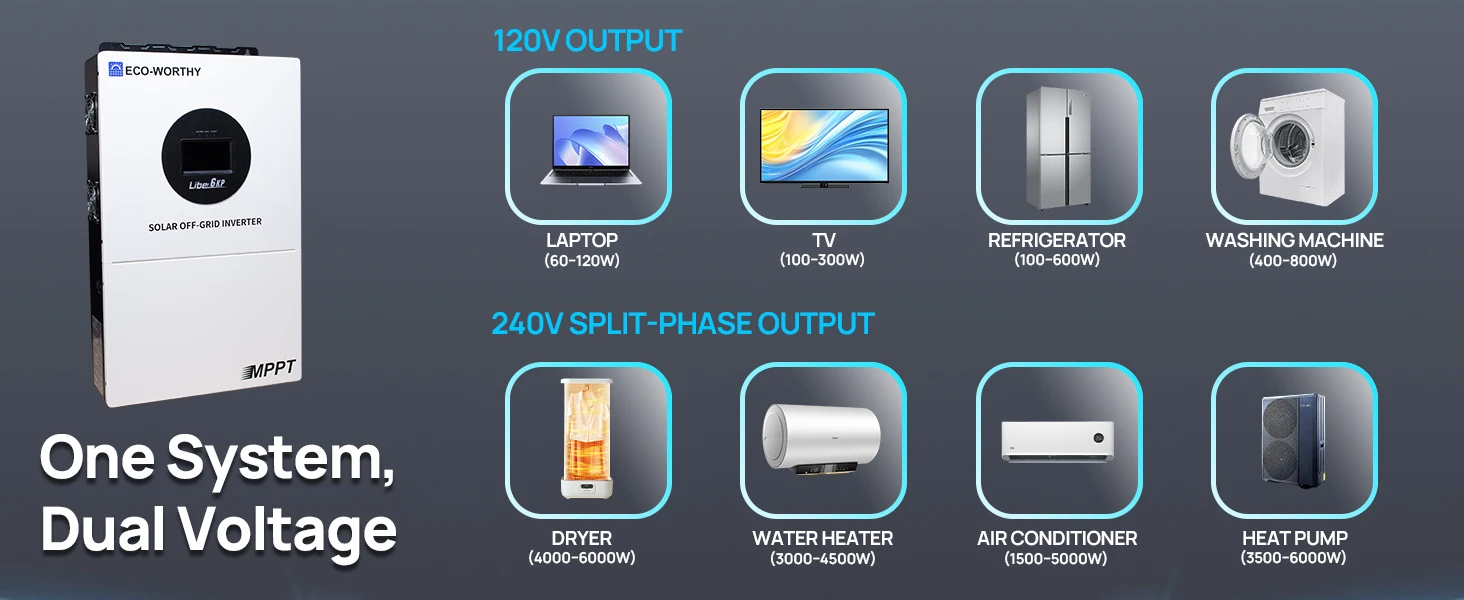

This hybrid solar inverter is suitable for various applications, such as home backup energy systems and off-grid cabins. It can power a variety of large household appliances that use split-phase AC, including air conditioners, water heaters, and washing machines.
